Complete Equipment Catalog

Working width: 200mm (8 inch) Total table length: 1800×230mm Cutter head blades: 4 pcs carbide blades Cutter head diameter: 70mm Cutter head speed: 5000rpm Max cutting depth per pass: 3mm Fence tilting range: 0°–45° adjustable Main motor power: 2.2kw / 3HP Voltage: 220V/380V, 50Hz Safety device: Emergency stop button + full safety guard Overall dimension: 1920×480×950mm Net weight: 185kg Standard Features Heavy-duty cast iron worktable for stable planing Adjustable aluminum fence for straight & bevel jointing Double safety protective cover to avoid accidental contact Low noise, smooth surface finishing for solid wood Ideal for furniture workshop, woodworking studio, carpentry processing

MJ930 Radial Arm Saw Technical Specifications Cutting Capacity: Max saw blade diameter: 350mm Max cross cutting width: 930mm Max cutting depth: 120mm Arm swivel angle: -45° ~ +45° Saw head tilting angle: 0°–45° for bevel cutting Spindle & Power Spindle speed: 2960rpm Main motor power: 2.2kW Voltage: 220V/50Hz Worktable & Structure: Worktable overall size: 1050×820mm Arm travel stroke: 930mm Operation mode: Manual pull feed Full safety blade guard for double safety protection Dimension & Weight: Overall machine size (L×W×H): 1450×1220×1700mm Net weight: approx. 280kg Core Features Wide radial arm for long timber cross cutting Multi-angle adjustable saw head for straight & bevel cut Stable cast iron table, smooth feeding Compact vertical stand structure, easy to install Widely used in furniture factory, carpentry workshop, solid wood processing

Max.Drilling/Tapping capacity: D:16mm / T:M12/M10 Diameter of column: 70mm Spindle travel: 100mm Distance spindle axis to column generating line: 193mm Max. Distance spindle nose to table: 315mm Max. Distance spindle nose to base: 556mm Spindle taper: MT2 Spindle speeds range: 480~4100 r/min Spindle speeds series: 5 speeds Dimension of work table surface: 200×230mm Dimension of base: 528×360mm Overall height: 1037mm Power of motor: 750W Gross Weight / Net Weight: 108kg / 90kg Packing dimension: 77×42×95 cm

MJ113TB Tilting Arbor Sliding Table Saw Technical Specifications Saw Blade & Spindle Max saw blade diameter: Φ405mm Spindle diameter: Φ25.4mm Spindle speed: 4200r/min Arbor tilting range: 0°–45° Cutting Capacity Max cutting thickness at 90°: 95mm Max cutting thickness at 45°: 70mm Max sliding cutting length: 920mm Worktable Sliding table size: 715×600mm Fixed table size: 580×750mm Slide rail travel: 700mm Slide rail dimension: 30×1300mm Overall dimension (L×W×H): 1600×1300×890mm Total weight: 220kg Power System Total motor power: 3kW / 4HP Voltage: 380V/50Hz 3-phase (220V single phase optional) Machine Dimension & Weight Overall machine size (L×W×H): 1600×1300×890mm Net weight: 210kg Core Standard Features Tilting arbor design for straight & bevel cutting Double heavy-duty sliding rail for high cutting precision Large cast iron table for stable panel processing Emergency stop button + full saw blade safety guard Suitable for plywood, MDF, solid wood, furniture panel cutting

12" Band Saw Technical Specifications Motor Type: Induction Motor Input Voltage: 220V/50Hz Motor Power: 1100W Max Cutting Height: 180mm Throat Depth: 307mm Band Speed (50Hz): 370 / 800 m/min Band Length: 2240mm Table Size: 548×400mm Net Weight / Gross Weight: 75kg / 78kg Packing Dimension (L×W×H): 1125×360×490mm

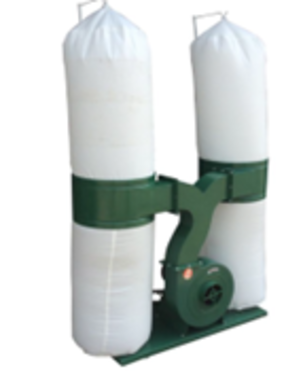

Motor power : 2200 Watt Fan Diameter : 305 mm Inlet Diameter : 150 mm Number of intake hole : Dia. 100 mm x 3 Air speed : 65 - 78 m3/min Collector bag : dia. 500 x 850 mm x 2 Bag volume : 0.307 m3

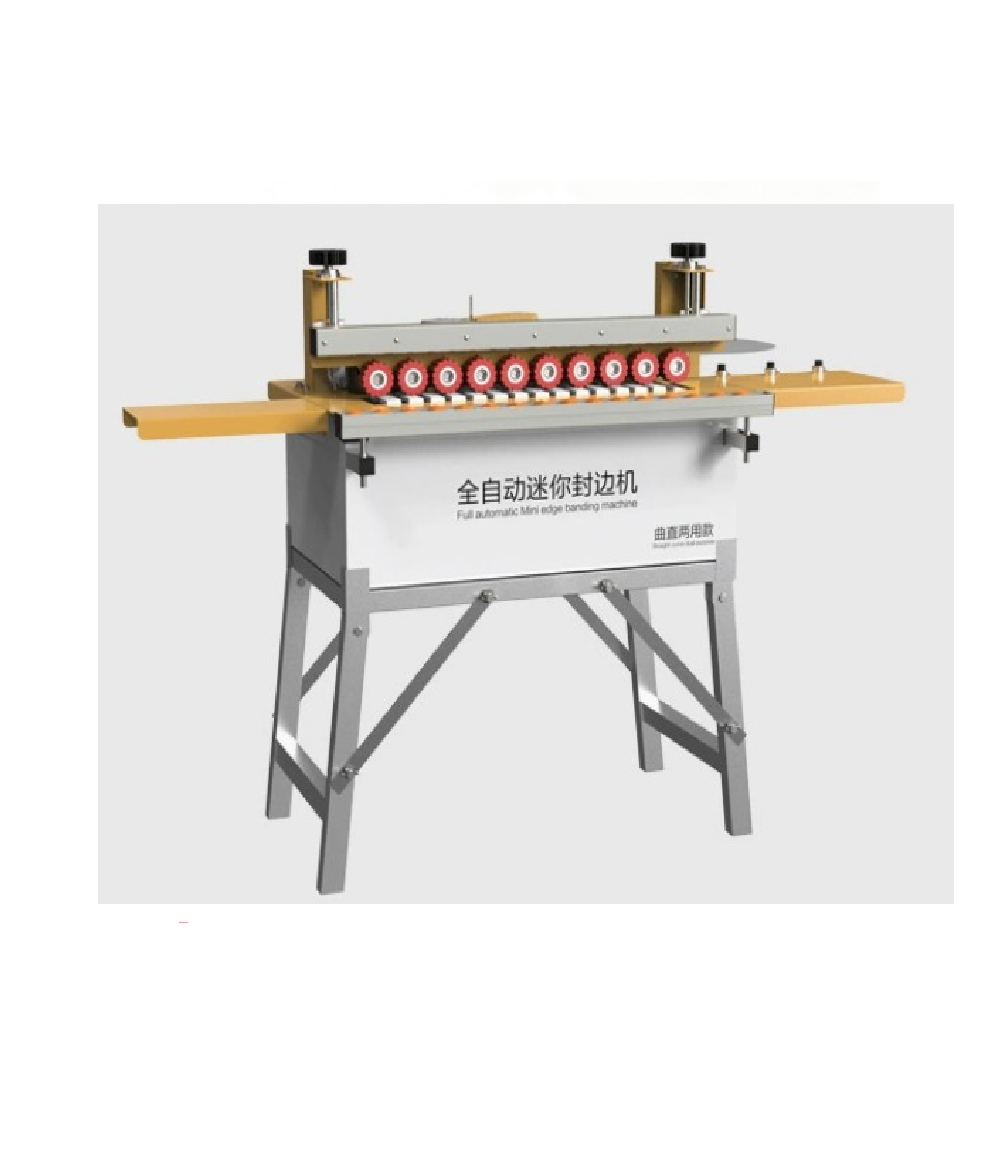

Overall Dimension: 135x50x102 cm Rated Power: 890W Power Supply Voltage: 220V Heating Time: 5-10 min Machine Weight: 55KG Glue Tank Capacity: 1000ml Product Introduction Automatic board feeding, double rows of pressing rollers, uniform glue coating, intelligent temperature control, suitable for both curved and straight edge banding.

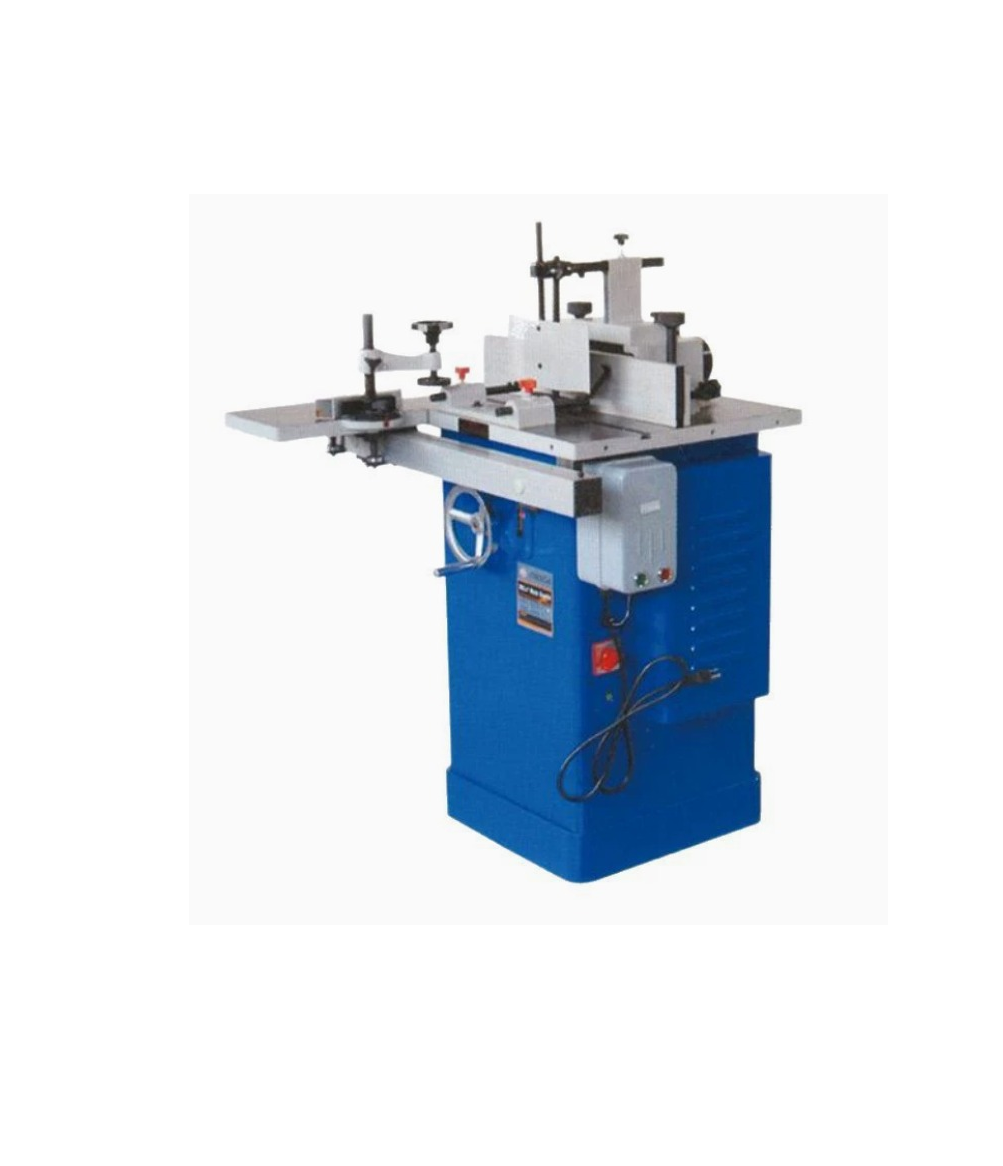

MX5115A Vertical Wood Spindle Moulder Spindle Diameter: 30mm Working Table Size: 610 × 534 mm Working Table Lifting Stroke: 75 mm Working Table Tilting Range: 0°~45° Max Milling Thickness: 50 mm Cutter Handle Diameter: 1/2", 3/4", 1" Spindle Speed: 8300 r/min Installed Motor Power: 2.2 kW Net Weight: 145 kg Packing (L×W×H): 655 × 575 × 1100 mm Main Features High-speed vertical spindle design for curve & straight edge shaping Cast iron worktable with stable vibration-free performance Manual hand wheel for precise table height adjustment Equipped with side sliding feeding table for long workpiece processing Full safety spindle guard, emergency stop button Widely used for chamfering, grooving, tenoning, arc shaping on solid wood, plywood and furniture panels

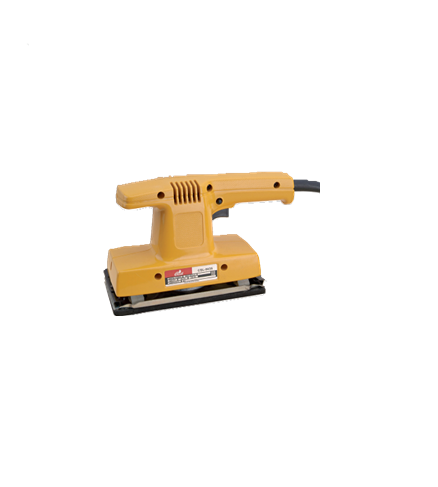

 Technical Parameter: No-Load Speed : 10000 r/min Pad Size : 90 x 180mm Rated Input Power : 220 watt Rated Voltage : 220/240 V, 50/60Hz

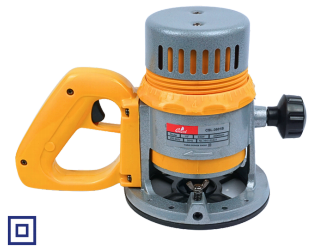

Type CSL-3601B : Technical Parameter: Collect Chuck : 1/2" Plug Running : 0~65 mm Rated Input Power : 1250 watt Rated Voltage : 220/240 V, 50/60Hz

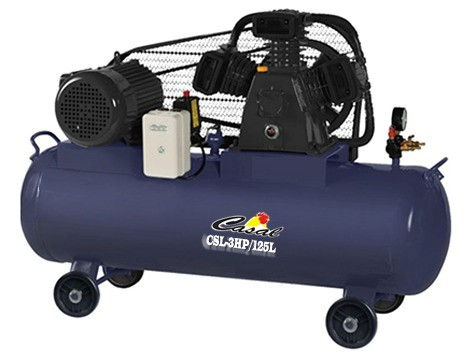

Tangki udara 125 liter Konsumsi Daya listrik ≥ 3 HP Daya Listrik 1 PH/220V atau 3 PH/380 V

Laser Distance Tape Measure Technical Specifications Product Name: Laser Distance Tape Measure Battery: 2 × 1.5V AAA Batteries Measuring Units: Laser: m/in/ft; Steel Tape: cm/in Overall Dimension: 85×82×56 mm Accuracy: ±2 mm Laser Type: 630nm-670nm, ≤1mW Measuring Range: Laser: 0.2–60m; Steel Tape: 0–5m Operating Temperature: 0–50℃ Data Storage: 20 groups of measurements

Power Supply Voltage: 3*380V, 50/60Hz Rate Input Capacity (KVA): 23 Rate Input Current (A): 33 No Load Voltage (V): 80 Output current Range (A): 20-400 Duty Cycle: 35% Weight (kg): 25 Dimensions LWH (mm): 560*240*460 Standard Accessories ● Welding cable 3m with earth clamp ● Welding cable 3m with electrode holder

Model MTS250 Power Supply Voltage 1 × 230 V, 50/60 Hz (single phase) Rated Input Capacity 10 kVA Rated Input Current 45 A No Load Voltage 60 V Output Current Range MIG: 30–250 A TIG: 10–250 A MMA: 10–200 A Duty Cycle 50% Weight 22 kg Dimensions (L × W × H) 560 × 240 × 460 mm Features & Advantages ● High frequancy IGBT inverter, Multi Process MIG / DC TIG / DC MMA ● 32bits MCU ● Analoge Panel ● Lift TIG ● 2T/4T ● Hot arc start, Arc force and Anti-stick for MMA ● 200/300mm wire spool ● 2 rollers wire feeder ● Spot and STT function for Mig ● 7 Pins socket for foot pedal & remote control Standard Accessories ● MIG torch 3m ● TIG torch 4m ● Gas hose 2m ● Argon/CO2 gas regulator ● Welding Cable with earth clamp and electrode holder

Model: TM200ACDC PULS HF Power Supply Voltage: 1 × 230 V, 50/60 Hz (single phase) Rated Input Capacity: 7.4 kVA Rated Input Current: 32.1 A No Load Voltage: 70 V Output Current Range: TIG: 10–200 A Duty Cycle: 60% Weight: 20 kg Dimensions (L × W × H): 530 × 185 × 325 mm Features & Advantages: ● IGBT Inverter AC&DC PULSE TIG, DC MMA ● HF and lift for TIG ● Up/down slop time adjustment ● Pre/Post gas flow time ● 2T/4T selection ● 7 Pins socket for foot pedal & remote control Standard Accessories ● TIG torch 4m ● Gas hose 2m ● Welding cable 3m with 300A earth clamp ● Welding cable 3m with 300A electrode holder ● Argon regulator

Features & Advantages IGBT high frequency inverter MIG, MMA Single PCB style design Easy operation. 100/200mm wire spool Gas and No Gas Single Phase power Standard Accessories MIG torch 3m Welding cable with earth clamp Gas hose 2m CO2 regulator Specifications Power Supply Voltage: 1*230V or 110V, 50/60Hz Rated Input Capacity: 4.4 KVA Rated Input Current: 20 A No Load Voltage: 60 V Output Current Range: MIG: 25–140 A MMA: 15–120 A Duty Cycle: 25% Weight: 12 kg Dimension: 440x220x320mm

This ultrasonic flaw detector is a newly launched ultrasonic testing product. It is widely used in industries such as boilers, pressure vessels, electric power, petrochemicals, offshore oil, pipelines, shipbuilding, automotive, machinery manufacturing, metallurgy, metal processing, steel structures, railway transportation, nuclear power, and universities. It enables convenient detection, localization, evaluation, and diagnosis of various internal defects (such as cracks, porosity, gas pores, inclusions, etc.) in workpieces. This digital ultrasonic flaw detector features a compact structure, stable waveform, long battery life, high sensitivity, and fast response. With a maximum pulse repetition frequency of up to 10,000 Hz, it is an extremely portable ultrasonic flaw detection product. Measurement Range (As per metrological requirements: ≥3500mm) 10 meters (Longitudinal wave in carbon steel) Pulse Mode Spike pulse, Square wave, Dual square wave Pulse Voltage 25V~300V adjustable, 25V step Pulse Width 0ns~500ns continuously adjustable, 10ns step Automatic or manual Damping Strong, Weak adjustable Pulse Repetition Frequency 100Hz~1000Hz continuously adjustable 10Hz step Gain 120dB, step 0.1dB, 1dB, 10dB Bandwidth 0.1MHz~25MHz Filter 1M~5M Display Screen Effective display size: Length 108mm, Width 64mm 5.0 inch LCD Resolution: 800×480 Instrument Interface Dual LEMO 00C5 Alarm Gate A, B alarm Output Interface Type-C USB Detection Modes Full wave, Positive half wave, Negative half wave, RF Gate Independent A, B Measurement Mode Peak, Flank Save Content Single frame, Multi-frame continuous recording (≤200 frames) Features Supports touch, Virtual keyboard, PD fast charging Quantitative Mode DAC curve, AVG (DGS) curve Auxiliary Functions Auto Gain, Peak Memory, Freeze Inspection Standards GB/T29712, GB/T11345 AWS D1.1/D1.5, NB/T47013 Language Chinese / English Dimensions & Weight 183mm x 113mm x 45mm 780 grams (including battery) Battery 12 hours Units Metric, Imperial Charger "Universal" AC (100~240V, 50/60Hz) Operating Temperature -10°C ~ 55°C Horizontal Linearity 0.6% (As per metrological requirements: ≤2%) Vertical Linearity 2.8% (As per metrological requirements: ≤6%) Sensitivity余量 (Sensitivity Excess/Sensitivity Reserve) 60dB (As per metrological requirements: ≥42dB) Dynamic Range 40dB (As per metrological requirements: ≥26dB) Resolution 36dB (As per metrological requirements: ≥26dB)untuk

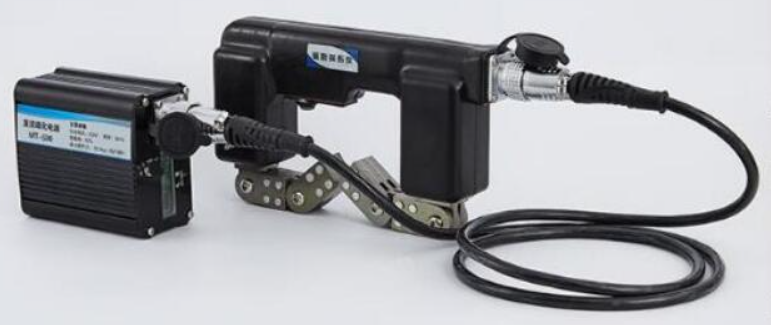

Model: MT-X5 Power Supply: AC220V 50Hz Operating Temperature: -10 ~ +40°C Operating Temperature Rise: < 18°C Relative Humidity: < 80% (No condensation) Magnetization Pole Spacing: 0 ~ 220 mm Lifting Force (DC): ≥ 22.0 kg (215 N) (Note: The image shows AC and DC values separated; the X5 falls under the higher DC spec) Weight: Electromagnetic Yoke: 2.4 kg Magnetization Power Supply: 1.0 kg / 1.2 kg

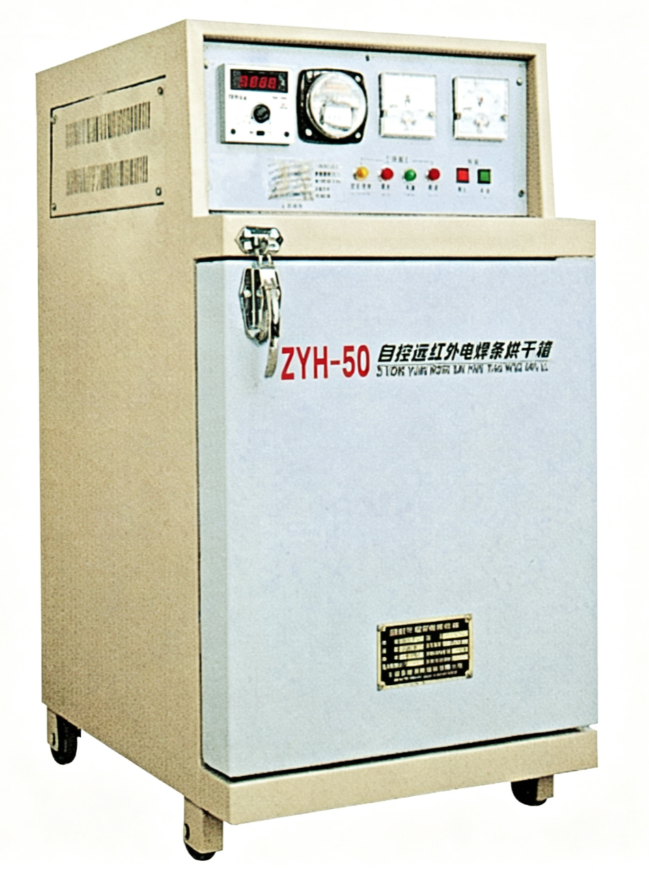

Input:220V/50Hz Capacity: 50kg Rated power: 4.6KVA Rod length: 450mm Max. temperature: 500℃ Weight: 120kg Dimenssions: 760*640*1080mm

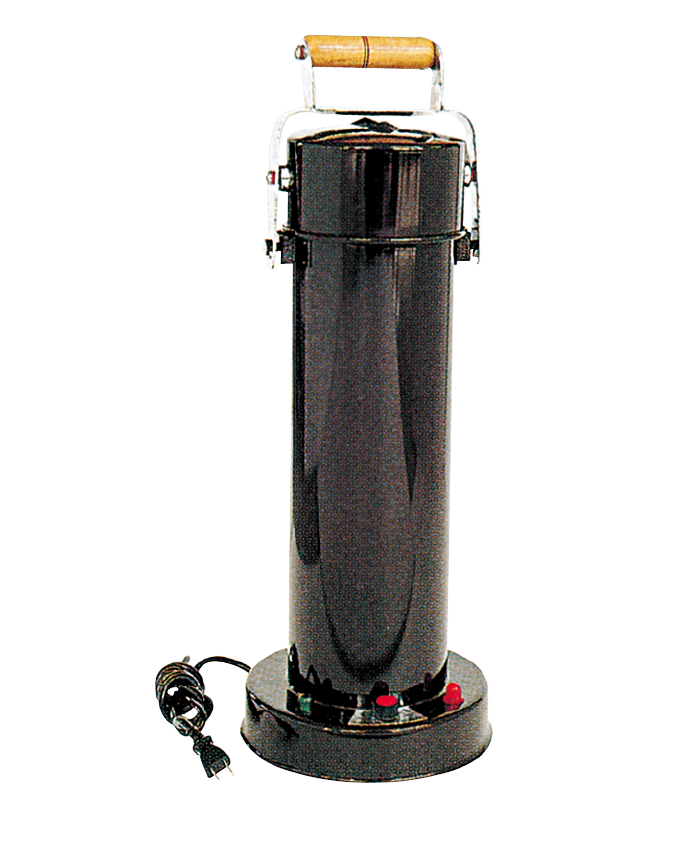

Model No.: WED015 Input: AC220V or Output of welding machine Capacity: 10 kg Power (W/V): 1300/220, 180/80 Rod Length: 450 mm Temperature range: 100~400℃ Material of Tank: Z.P.Steel Packing info: 48*48*68cm/4Pcs, G.W. 21kg Use AC220V and secondary A/C output voltage from the welding machine The tank can be tilted by 45 dgree for the convenience to take welding rod The time for the dry will be extended during the using of the welding machine

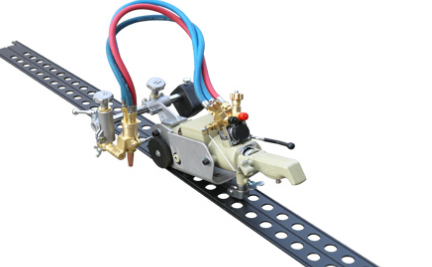

1.Weight：9.8kg 2. Length：455mm 3. Power source：220V±10% 4.Speed control：Variablr resistor 5.Cutting speed：50Hz 50-750mm/min 6.Cutting thickness : 6～30mm 7 Bevel angle : 0～45° 8.Tip : G02(for asetylene) or G03, for propane 9.Gas : Oxygen, acetylene gas, or LPG gas.

Blander

REGULATOR GAS UTK LAS , GAS : OXYGEN

REGULATOR GAS UTK LAS , GAS : ACETYLEN

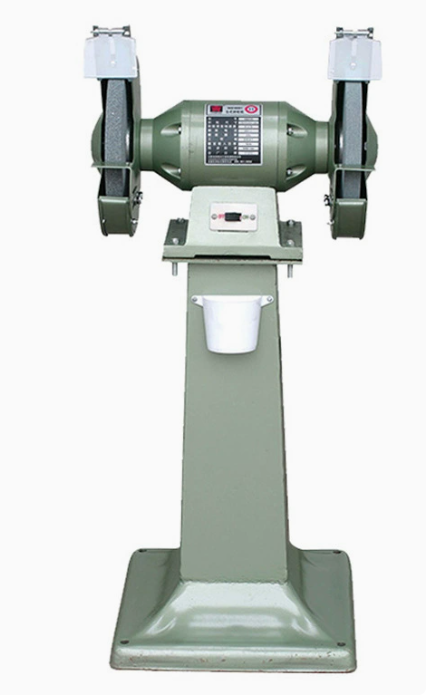

Rated Voltage: 380 V AC Rated Frequency: 50 Hz Rated Power: 750 W Synchronous Speed: 3000 r/min (RPM) Duty Cycle: S1 (Continuous running) Grinding Wheel Dimensions: 250 mm (diameter) × 30 mm (thickness) × 32 mm (bore diameter) Overall height: 1000mm Weight: 25kg

Heavy Duty Swivel 150mm, 27 kg

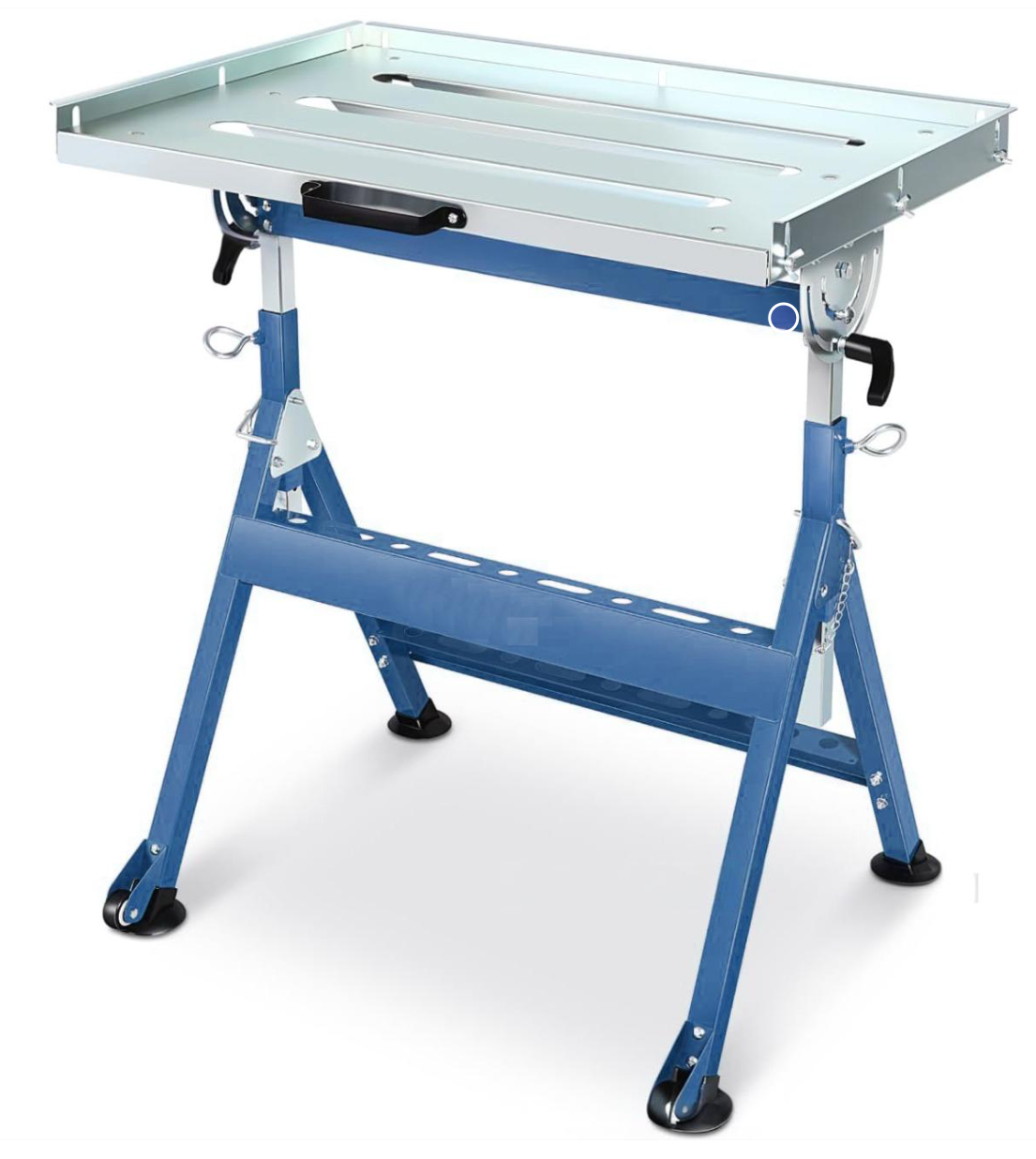

Model: TS3020 Desktop Dimensions: 760 x 510 mm Desktop Height: 660 ~ 810 mm Slot Width: 28 mm Adjustable Angles: Horizontal, 30°, 80° folded Load Capacity: 160 kg Weight: 20 kg Quantity per Package: 1

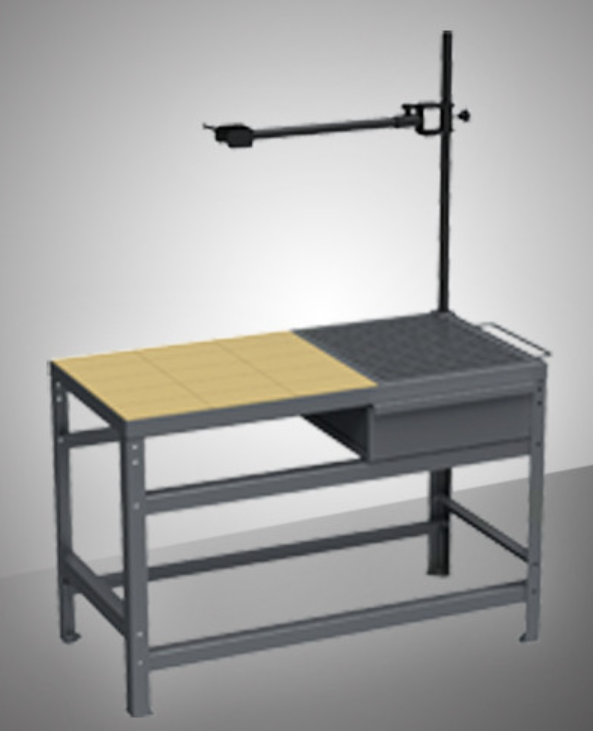

Welding Training Table size:1000*600*800mm by HERR industry system With TANAKA Oxygen / LPG / CO2 / Argon Regulators
